Terraform Troubleshooting Guide: Fix the Errors Engineers Actually Hit

When I troubleshoot Terraform, I classify the failure before I change anything.

An initialization error, provider authentication error, state lock, cloud API rejection, destructive plan, and slow apply need different evidence. I do not randomly delete .terraform, unlock state, or retry an apply because that can destroy the clues.

I use this page as my general runbook. For the specific message Acquiring state lock, I use Terraform Apply Stuck Acquiring State Lock.

The safe first five minutes

In the first five minutes, I collect:

terraform version
terraform providers
terraform workspace show
terraform validate
git rev-parse HEAD

I also record the working directory, backend key or workspace, active cloud account or subscription, command, exit code, timestamp, runner, and sanitized error message.

I do not post state, plan files, tokens, or unredacted debug logs in a public issue.

Fast diagnosis decision tree

I make the decision from the failed stage, not the loudest line in the log. A 403 during init can come from the backend, while a 403 during plan can come from the provider reading a cloud API. Those failures can involve the same identity but require different permissions and evidence.

Terraform error messages: find your fix

I use the literal message to find a starting point, then I confirm the failed stage and target before changing anything.

Classify the failure

“Inconsistent dependency lock file”

The configuration and .terraform.lock.hcl disagree. I do not delete the lock file as an automatic answer.

I check whether required_providers or module sources changed:

terraform init
git diff -- .terraform.lock.hcl

For an intentional upgrade, I run:

terraform init -upgrade

I review provider version and checksum changes, then commit the updated lock file with the dependency change.

“Failed to query available provider packages”

I check:

• DNS and outbound HTTPS from the runner
• Proxy and custom CA configuration
• Provider source spelling
• Registry availability
• Version constraints that have no common solution
• Platform/architecture support for the chosen provider

I do not widen firewall rules permanently just to prove the registry is reachable. I test the exact approved egress path.

Backend changes: reconfigure versus migrate-state

terraform init -migrate-state asks Terraform to copy existing state to the changed backend. terraform init -reconfigure discards the cached backend configuration and does not migrate existing state. These flags solve different problems.

I never use -force-copy as a first diagnostic step. It suppresses migration confirmation, which is the opposite of what I need during an uncertain recovery.

Module installation and source failures

For Module not installed, an invalid registry or Git source, a missing ref, or a private-module authentication failure, I record the root module and module source before clearing anything.

pwd
terraform version
terraform init -input=false -no-color
git diff -- '*.tf' .terraform.lock.hcl

Remote module versions are controlled by the module version constraint when the registry protocol supports it. I pin a deliberate Git ref rather than silently following a mutable branch. I do not copy .terraform/modules from a developer laptop into CI. I reinitialize from the declared sources using the runner's approved credentials.

“Reference to undeclared resource”

Terraform addresses are exact. I check the resource type, local name, module path, and whether count or for_each makes the reference a collection.

# resource with for_each
azurerm_subnet.this["web"].id

I use terraform validate and inspect module outputs rather than reaching into a child module's internal resource addresses.

Variables, tfvars, environment, and working directories

A plan that is correct locally but wrong in CI often loaded different values rather than different code. I record all explicit -var-file arguments, the current root, workspace, and relevant variable names without printing secret values.

For Terraform CLI, later and more explicit sources take priority. Command-line -var and -var-file values override auto-loaded files; *.auto.tfvars files override terraform.tfvars; environment variables named TF_VAR_name override defaults but lose to those files and command-line arguments.

pwd
terraform workspace show
find . -maxdepth 1 -type f \( -name '*.tfvars' -o -name '*.tfvars.json' \) -print
env | sed -n 's/^\(TF_VAR_[^=]*\)=.*/\1=[set]/p'

The last command records names only. I deliberately do not print values. In CI, I use -input=false so a missing required variable fails instead of waiting for a prompt that no person can answer.

Dependency cycles

Cycle means Terraform cannot order the graph because a dependency eventually points back to its starting node. Common causes include two resources referencing each other, a module output feeding an input back into the same module, or broad bidirectional depends_on blocks.

When Graphviz is installed, I generate a graph for diagnosis:

terraform graph -type=plan > graph.dot
dot -Tsvg graph.dot -o graph.svg

terraform graph is useful evidence, but I usually remove the false dependency or split ownership at a real lifecycle boundary. Adding more broad depends_on declarations can make the graph less accurate and produce more unknown values.

# Broken: each object explicitly waits for the other.
resource "terraform_data" "network" {
  depends_on = [terraform_data.application]
}

resource "terraform_data" "application" {
  depends_on = [terraform_data.network]
}

The corrected design should establish one direction only, based on a real data flow:

resource "terraform_data" "network" {
  input = "network-ready"
}

resource "terraform_data" "application" {
  input = terraform_data.network.output
}

Authentication works locally but fails in CI

My local Azure CLI credentials do not exist on a hosted runner. I configure CI to authenticate explicitly with OIDC or another approved short-lived method.

I verify tenant, subscription, client identity, federated subject or audience, Azure RBAC, and backend data-plane permission. The provider and backend can use related but distinct authentication settings.

I use the GitHub Actions Terraform pipeline for the complete pattern.

CI diagnostic matrix

Local credentials do not automatically exist on a hosted runner. I compare the local and runner context explicitly:

Backend authentication and provider authentication are separate diagnostic targets. A runner may be able to read Azure resources while lacking blob data-plane access to state, or it may initialize the backend successfully but lack permission to create the planned resources.

I do not copy a developer's Azure CLI cache or long-lived client secret into CI. I use the approved short-lived identity flow and inspect its exact federated claims. The GitHub Actions Terraform pipeline documents the complete repository workflow I follow.

Azure Terraform troubleshooting appendix

These Azure checks come from Microsoft Learn. I run them against the intended non-production scope first. I did not exercise them in the local lab below.

Wrong tenant or subscription

Before I change it, I record the active context:

az account show \
  --query '{tenantId:tenantId,subscriptionId:id,principal:user.name}' \
  --output jsonc

I compare it with the backend and provider configuration. I do not switch subscriptions until I have captured the original context, or I lose evidence of why the first request targeted the wrong place.

AuthorizationFailed, 401, and 403

I use the failed operation and scope from the Azure error. I confirm the caller object ID and effective role assignments at that scope. I do not grant Owner at subscription scope as a diagnostic shortcut. Microsoft documents that new role assignments can take time to become visible, so I refresh the token after the assignment propagates instead of repeatedly changing roles.

Missing subscription registration

For MissingSubscriptionRegistration or NoRegisteredProviderFound, I inspect the required namespace:

az provider show \
  --namespace Microsoft.Network \
  --query registrationState \
  --output tsv

I register only the provider namespaces the deployment needs and only with an identity permitted to perform the registration action. I also verify that the resource type and selected region are supported before assuming registration is the only problem.

Azure Policy denial

Azure Policy with a deny or denyAction effect can stop a create or update request even when RBAC allows it. I inspect the failed deployment operation and Azure Activity Log for the policy assignment and definition. The safe correction may be a compliant configuration change or an approved policy exemption, not broader RBAC.

Private networking and long-running operations

For private endpoints, I confirm DNS resolution and network reachability from the runner as separate facts. For ARM operation timeouts, I inspect the Azure operation and provisioning state before retrying. A Terraform timeout, an unreachable data-plane endpoint, and a failed Azure Resource Manager request are different failure classes even when all appear during apply.

Plan, drift, replacement, and state

I treat a plan as diagnostic evidence. I read its target account, resource addresses, action symbols, and summary before I treat it as an instruction to apply.

“Resource already exists”

When Terraform state does not own the remote object at the address being created, I decide whether to:

• Import the existing object
• Rename the new object
• I remove an accidental unmanaged object through the approved process
• Point the configuration to the correct environment

I use configuration-driven import to make the association reviewable:

import {
  to = azurerm_resource_group.platform
  id = "/subscriptions/.../resourceGroups/rg-platform-prod"
}

I expect the first plan after import to avoid destructive change. I match configuration to the existing object before taking ownership of its lifecycle.

Terraform wants to replace a resource unexpectedly

I look for forces replacement in the plan and inspect:

• Provider upgrade behavior
• Immutable cloud API properties
• Resource address or for_each key changes
• Normalization of casing, IDs, or defaults
• A module default that changed
• Drift outside Terraform

I do not apply until I understand user impact. A moved block can represent a code refactor; it cannot make an immutable cloud property mutable.

A plan shows widespread deletions

I stop and check the backend key, workspace, subscription or account, variable files, module source or version, and collection keys.

A wrong workspace or empty or wrong state can make Terraform believe it must create or delete an entire environment. I preserve evidence before changing backend configuration.

Drift appears after a portal change

I use a refresh-only plan to inspect real-world differences without proposing to change infrastructure:

terraform plan -refresh-only

I then decide whether to update configuration to accept the change, revert the cloud resource to code, or import a new object. I do not auto-apply unknown drift.

Apply timed out but the resource exists

A client timeout does not prove the cloud operation failed. I check Azure Activity Log and resource provisioning state before retrying.

Retrying blindly can produce conflicts or a second long-running operation. Once the platform settles, I run a complete plan to see what Terraform and the provider observe.

Provider produced an inconsistent result

I capture a minimal sanitized reproduction, Terraform version, provider version, resource type, plan or apply sequence, and relevant provider logs. I check the provider's official issue tracker and upgrade notes.

Before I upgrade or downgrade a provider, I preserve the lock file and state, test outside production, and review the plan. Provider changes can alter defaults and replacement behavior.

State address and import tools

I start with read-only inspection:

terraform state list
terraform state show 'module.network.azurerm_virtual_network.this'

State mutation commands are high risk. I use configuration moved and import blocks when they make the change reviewable. If terraform state mv, rm, or push is genuinely required, I freeze other writers, back up state, use peer review, and run a complete plan immediately afterward.

Debug logs without leaking secrets

Terraform supports detailed logging through environment variables such as TF_LOG. I treat debug output as sensitive because it can include values and provider requests.

I write logs only to a protected location, reproduce the smallest case, redact before sharing, and delete according to retention policy. I never turn on verbose logging globally in production CI.

The escalation package

• Exact sanitized error and command are recorded
• Terraform and provider versions are known
• Commit, root, workspace, backend key, and target are confirmed
• Cloud activity and provisioning state were checked
• A minimal reproduction was attempted safely
• State, plans, logs, and credentials were not exposed
• No concurrent writer or interrupted apply is still active

Reproducible evidence lab: troubleshooting from failure to fix

I used a disposable directory for this lab. When I run a lab that reaches Azure, I use a non-production subscription. Proof files can contain resource IDs or plan values, so I inspect them before sharing.

Create the evidence workspace

export TF_EVIDENCE_ROOT="${PWD}/.evidence/terraform-campaign"
export TF_EVIDENCE_SLUG="terraform-troubleshooting-guide"
export TF_EVIDENCE_DIR="$TF_EVIDENCE_ROOT/$TF_EVIDENCE_SLUG"
mkdir -p "$TF_EVIDENCE_DIR/proof"
cd "$TF_EVIDENCE_DIR"
date -u +"%Y-%m-%dT%H:%M:%SZ" | tee proof/run-started-utc.txt
terraform version | tee proof/terraform-version.txt

Beginner walkthrough

1. I started a new evidence session with TF_EVIDENCE_SLUG="terraform-troubleshooting-guide".
2. I created the working main.tf below and ran terraform init -backend=false plus terraform validate before introducing the problem. That baseline proved the starting file worked.
3. I added only the broken output below, saved the file, and ran validation with stderr captured.
4. I read the first diagnostic and recorded the stage as validate, the target as terraform_data.does_not_exist, and the hypothesis as the output references an undeclared resource.
5. I compared the command, error heading, and invalid reference with the validation evidence below. It omits personal filesystem paths.
6. I removed only the broken output, then ran format, validation, and plan again.
7. I confirmed that validation succeeded and the plan contained the expected single resource.
8. I added the exact commands and UTC time to proof/incident-notes.md, then removed local state once I no longer needed it.

If validation still fails after I remove the block, I compare braces in main.tf and rerun terraform fmt; formatting often exposes a missing closing brace clearly.

I started with this complete working main.tf:

terraform {
  required_version = ">= 1.10.0"
}

resource "terraform_data" "release" {
  input = "reviewed-v1"
}

output "release" {
  value = terraform_data.release.output
}

I ran terraform init -backend=false and terraform validate. Only after both succeeded, I appended this controlled error to the same file:

output "broken_reference" {
  value = terraform_data.does_not_exist.output
}

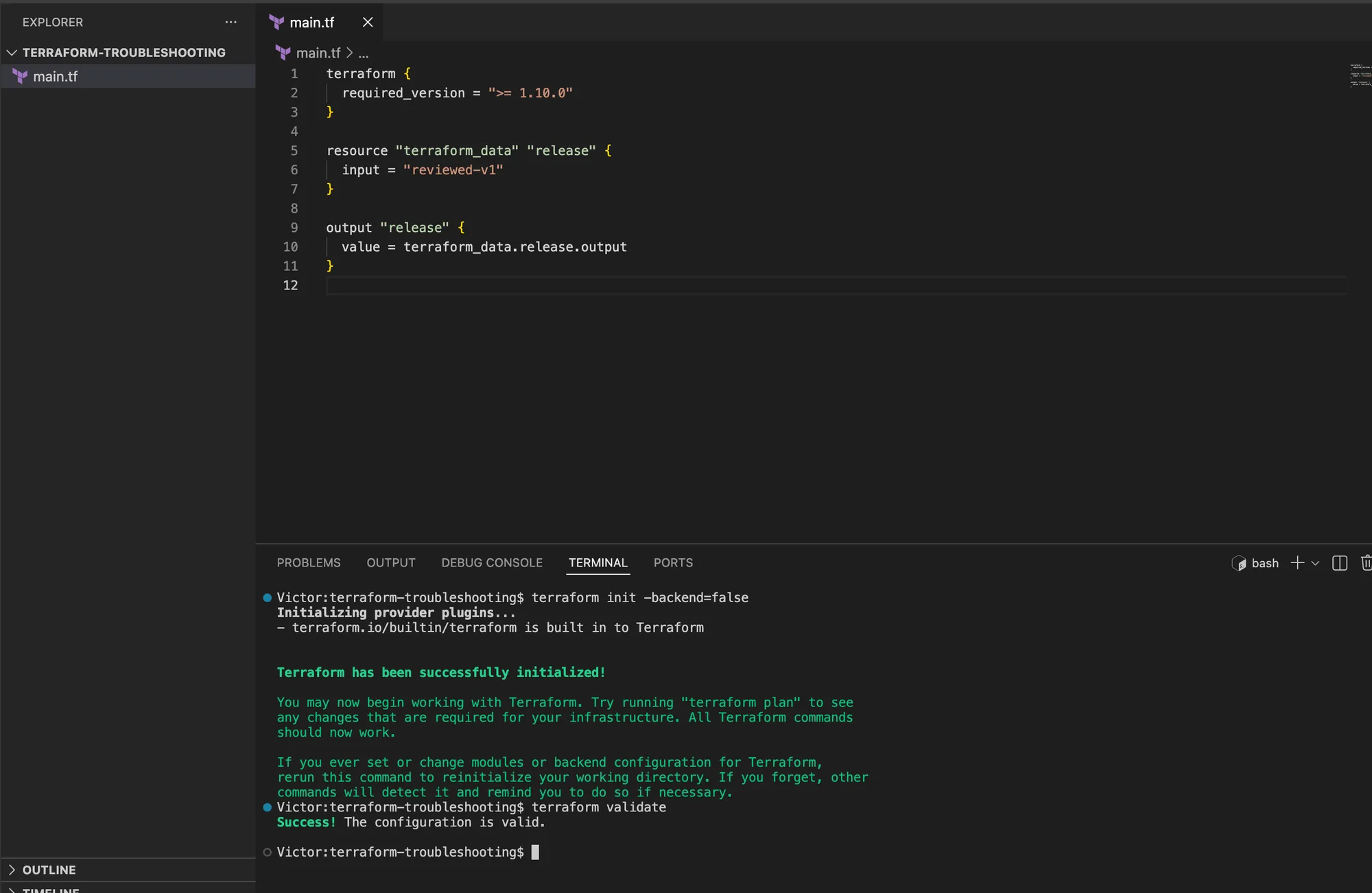

In my run, the baseline initialized without a backend and passed validation before I introduced the controlled error.

I then ran the validation failure:

terraform init -backend=false -input=false
terraform validate -no-color 2>&1 | tee proof/validate-failure.txt

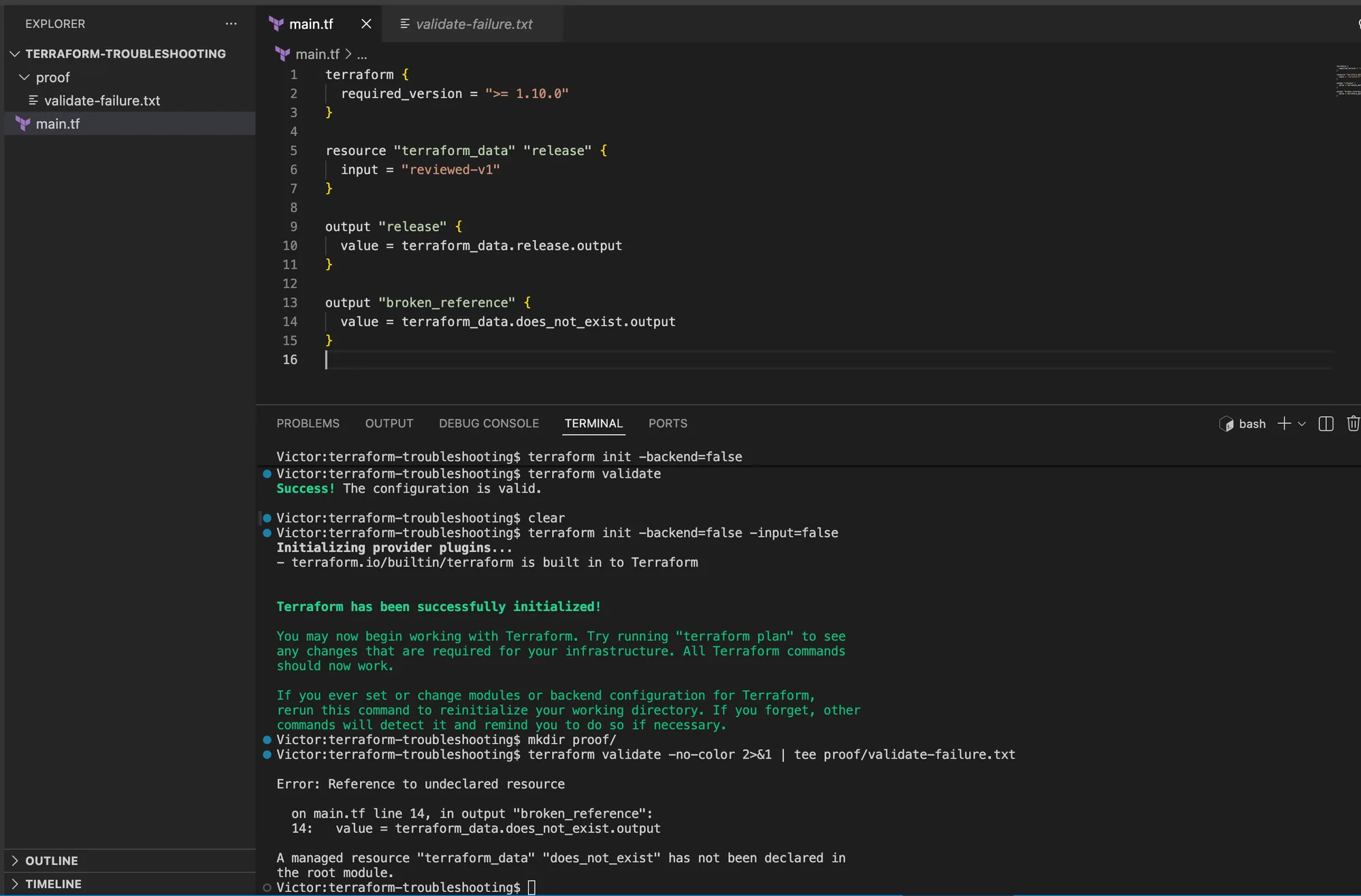

The terminal output identifies terraform_data.does_not_exist as an undeclared resource at the output's line in main.tf.

I recorded the stage, target, first error line, hypothesis, and fix in proof/incident-notes.md. After I removed the broken output, I ran:

terraform fmt -check
terraform validate -no-color | tee proof/validate-fixed.txt
terraform plan -no-color | tee proof/plan-fixed.txt

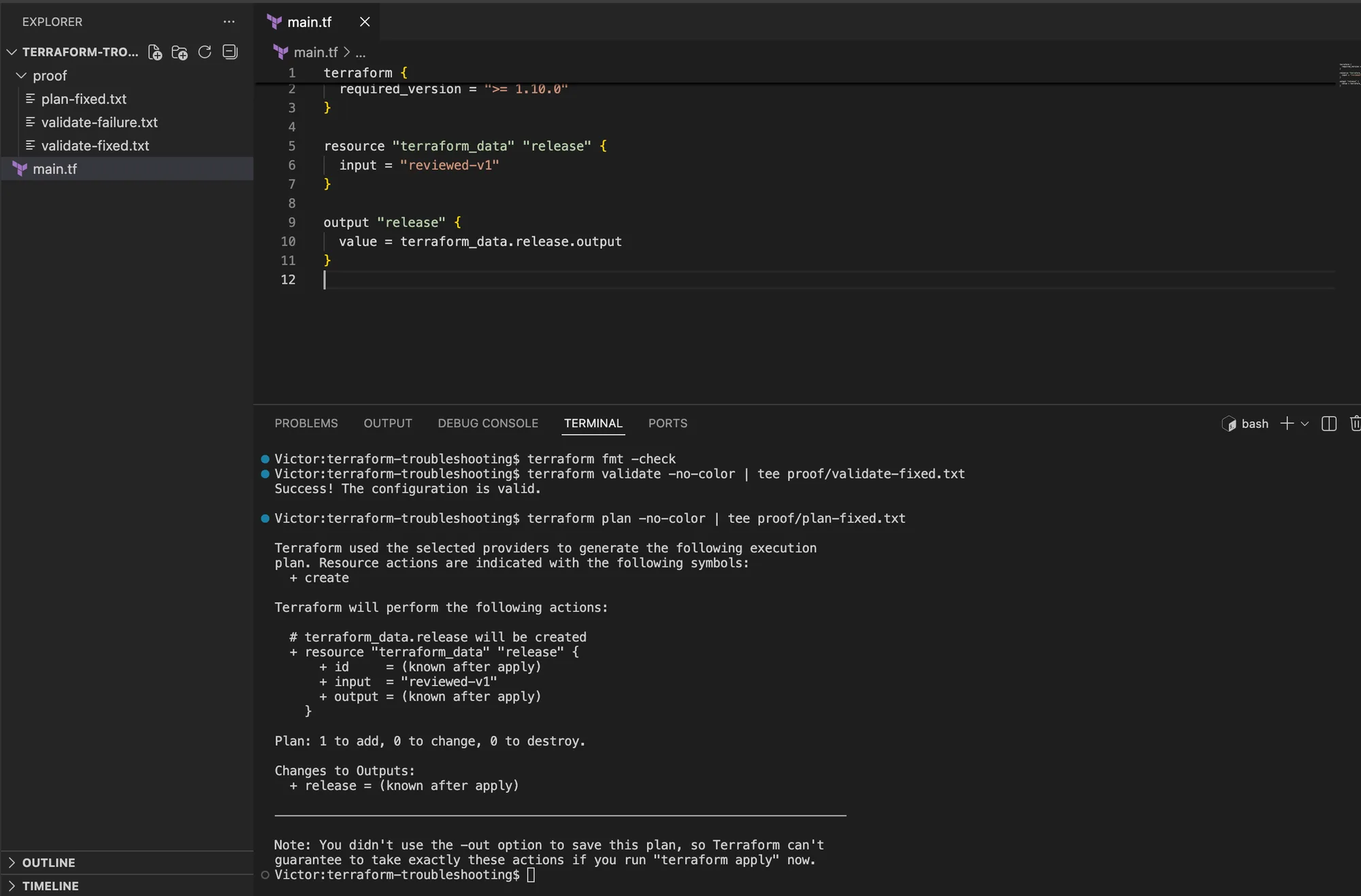

The corrected file validated successfully, and the resulting plan proposed one local terraform_data.release object. The screenshot below is from my run. I do not expose debug logs unless I have reviewed them for credentials and state values.

Executed environment and claim boundary

My local run proved validation diagnosis, local-state inspection, an unsafe replacement plan, a configuration-driven address move, and cleanup. It does not prove Azure authentication, remote-state locking, provider import behavior, organizational policy, or production safety.

Focused lab: stop an accidental replacement before apply

I used this focused incident to demonstrate why a valid plan can still be unsafe. I replaced main.tf with this complete baseline:

terraform {
  required_version = ">= 1.10.0"
}

resource "terraform_data" "release" {
  for_each = toset(["api"])

  input = "reviewed-v1"
}

output "release" {
  value = terraform_data.release["api"].output
}

I initialized, validated, and created the disposable local object:

terraform init -backend=false -input=false -no-color \
  | tee proof/10-init.txt
terraform fmt -check
terraform validate -no-color \
  | tee proof/10-validate.txt
terraform apply -auto-approve -input=false -no-color \
  | tee proof/10-apply-baseline.txt
terraform state list \
  | tee proof/10-state-before.txt
terraform state show 'terraform_data.release["api"]' \
  | tee proof/10-state-show.txt

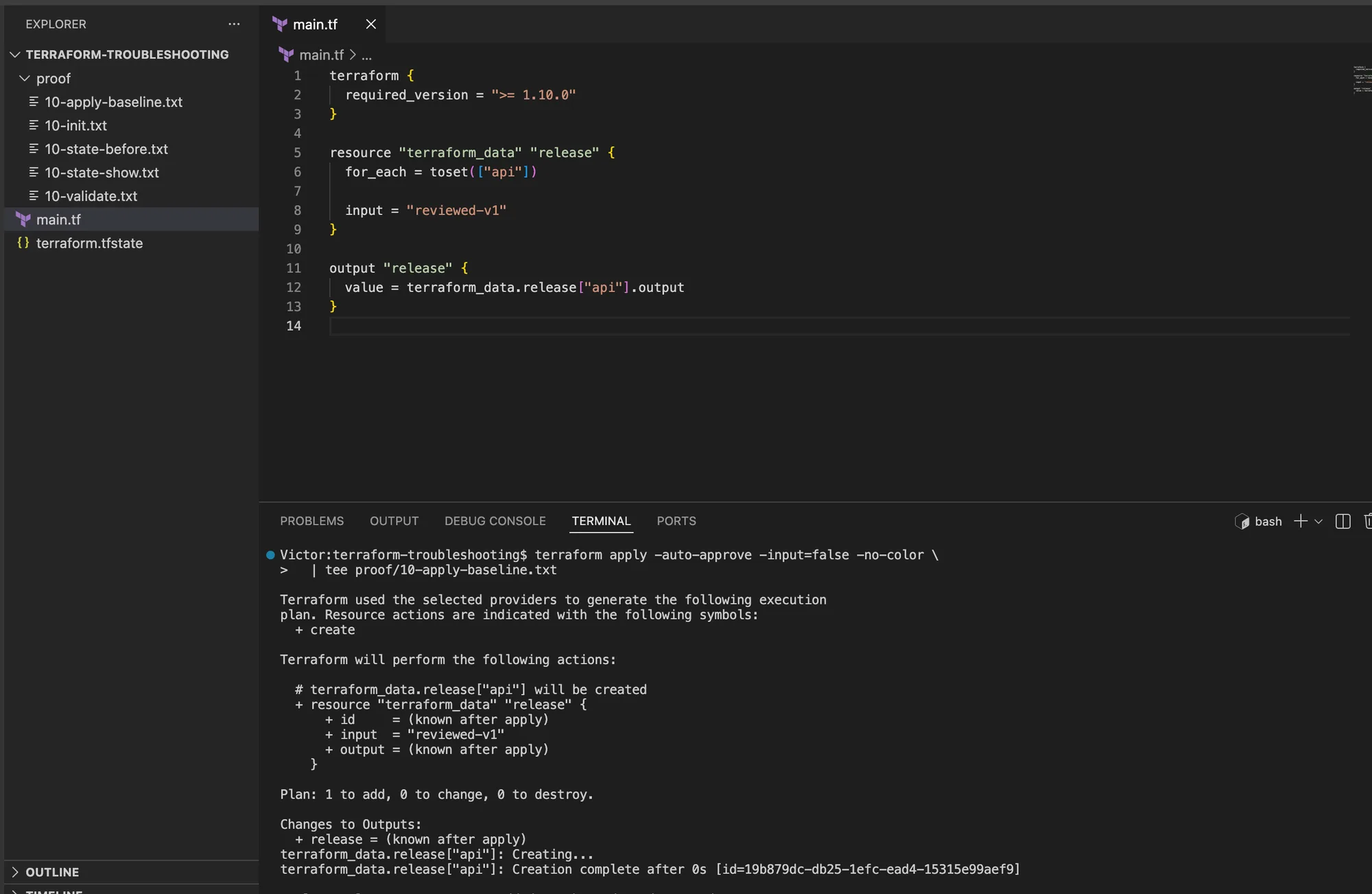

I expected the apply summary to be 1 added, 0 changed, 0 destroyed, and I verified that state contained exactly:

terraform_data.release["api"]

My baseline created the api instance before the address refactor.

To reproduce a realistic refactor mistake, I changed both occurrences of "api" in main.tf to "service" without adding a moved block. The file remained valid, so validation alone could not protect the object:

terraform fmt -check
terraform validate -no-color
terraform plan -input=false -no-color \
  | tee proof/11-unsafe-plan.txt

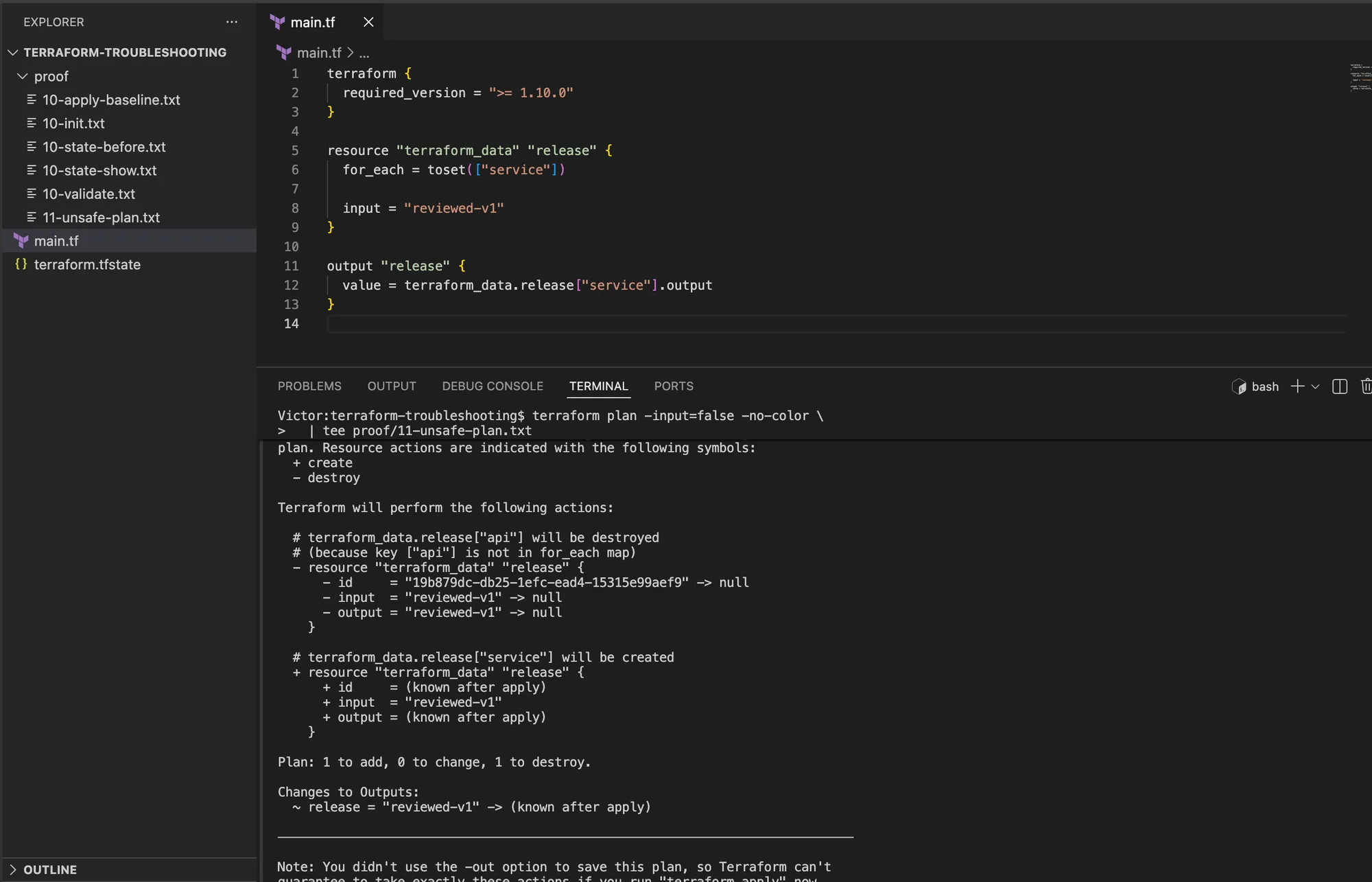

My plan contained these decisive lines:

# terraform_data.release["api"] will be destroyed
# (because key ["api"] is not in for_each map)
# terraform_data.release["service"] will be created
Plan: 1 to add, 0 to change, 1 to destroy.

I did not apply. The symptom was a delete and create after a collection-key rename. The evidence was that the old address remained in state while configuration declared the new address. I treated that as an address refactor, not a desired lifecycle replacement.

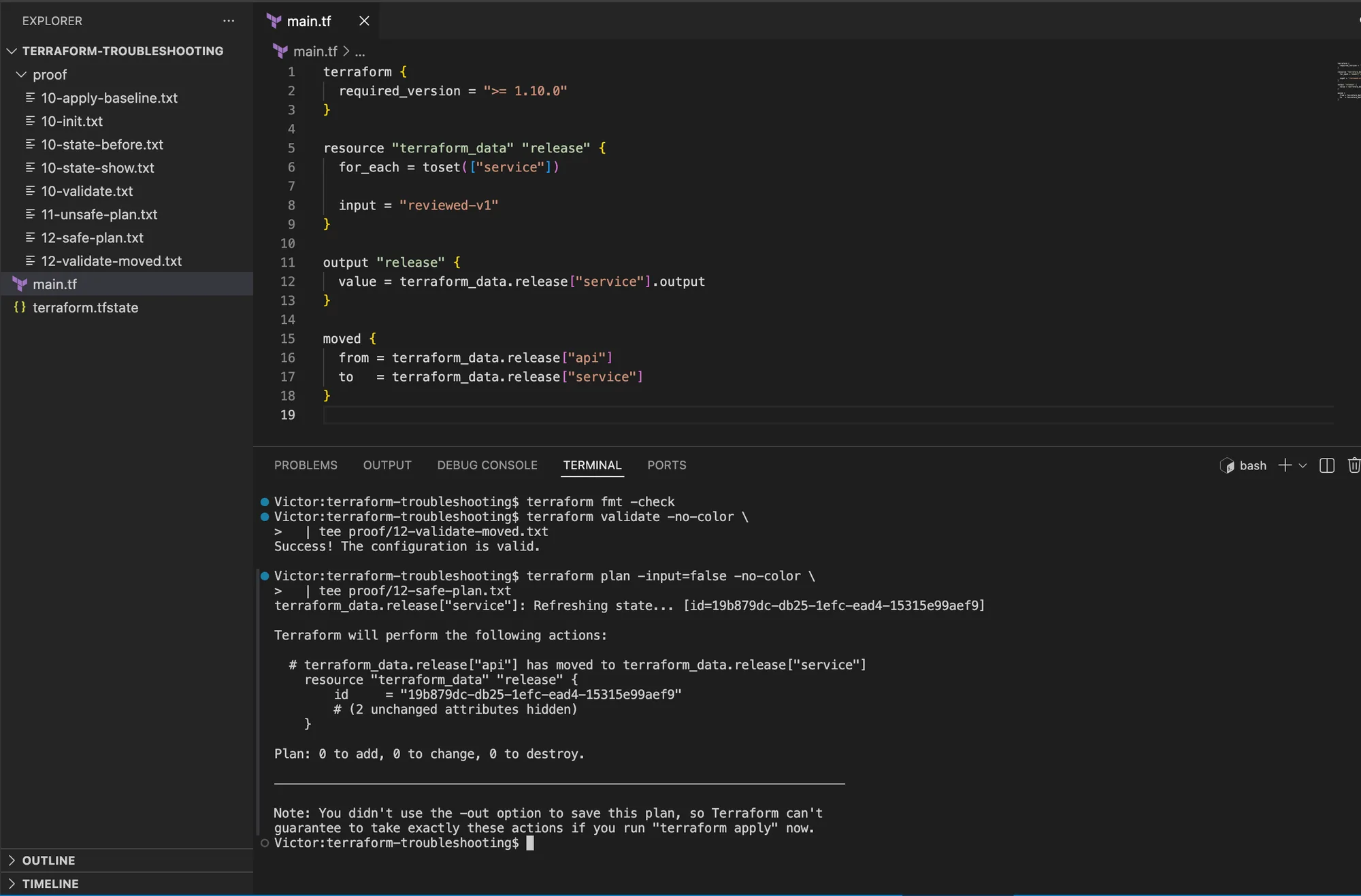

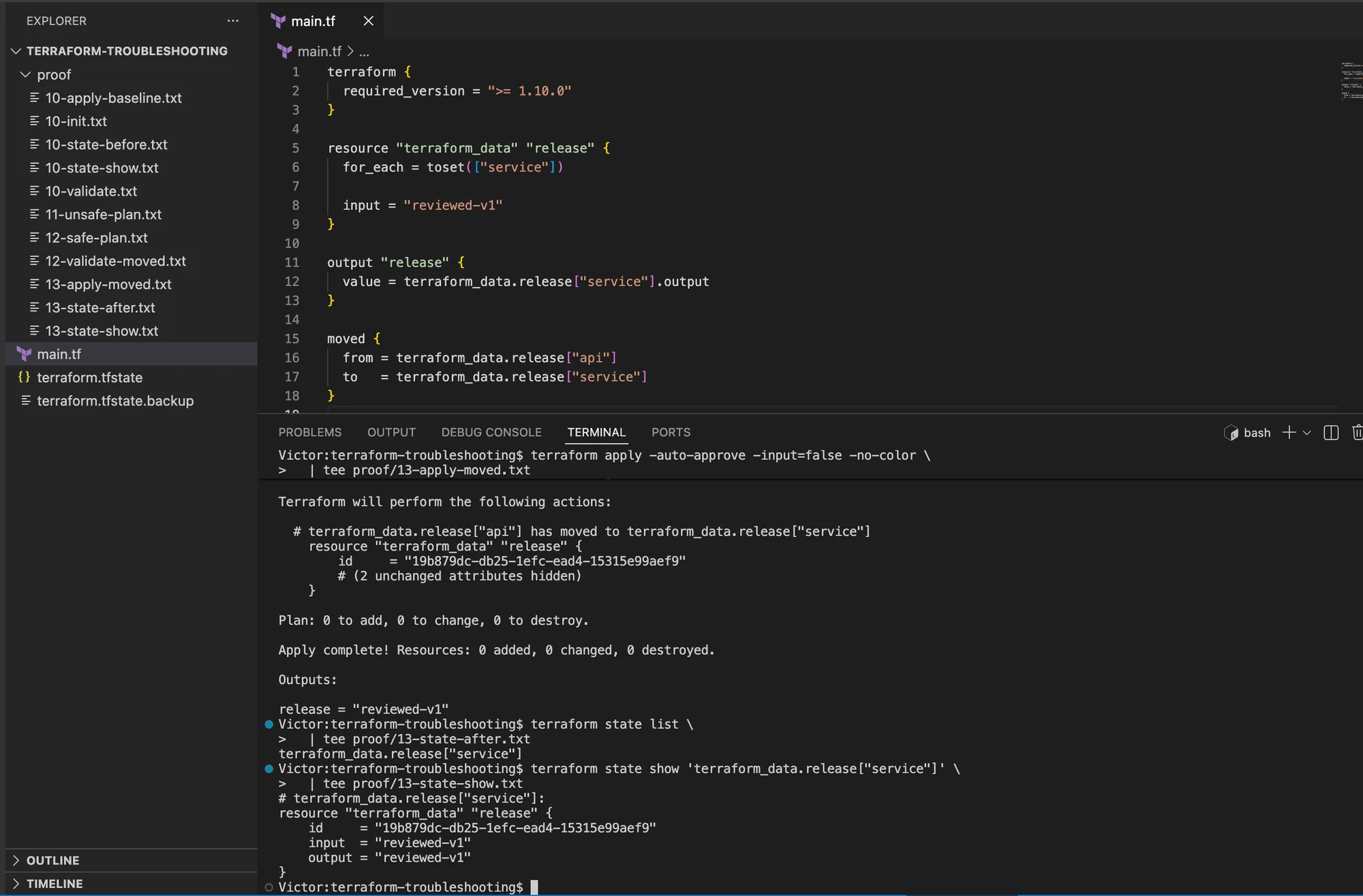

I recorded the relationship in configuration:

moved {
  from = terraform_data.release["api"]
  to   = terraform_data.release["service"]
}

I then ran the repair checks:

terraform fmt -check
terraform validate -no-color \
  | tee proof/12-validate-moved.txt
terraform plan -input=false -no-color \
  | tee proof/12-safe-plan.txt

My repair produced:

# terraform_data.release["api"] has moved to terraform_data.release["service"]
Plan: 0 to add, 0 to change, 0 to destroy.

The plan recognizes the address move and reports no infrastructure changes.

I applied the reviewed no-change move and verified the new address:

terraform apply -auto-approve -input=false -no-color \
  | tee proof/13-apply-moved.txt
terraform state list \
  | tee proof/13-state-after.txt
terraform state show 'terraform_data.release["service"]' \
  | tee proof/13-state-show.txt

The object ID before and after the move matched. That was my independent evidence that Terraform preserved the object rather than destroying and recreating it.

My apply completed with zero resources changed, and state inspection showed the original object ID at terraform_data.release["service"].

Lab cleanup and proof that it is gone

Before cleanup, I reviewed the destroy plan:

terraform plan -destroy -input=false -no-color \
  | tee proof/90-destroy-plan.txt

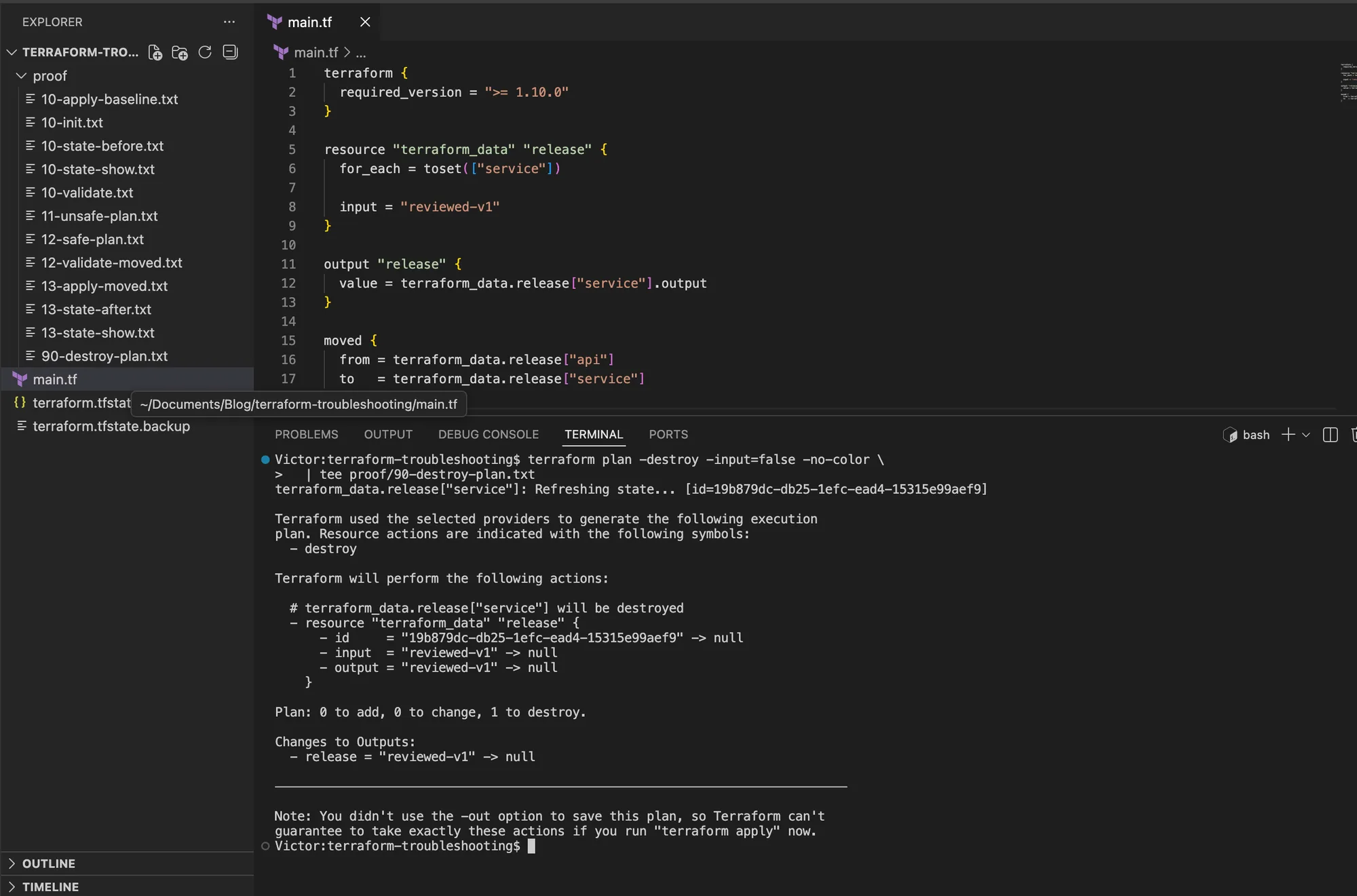

I would stop if the plan contained anything except the single local terraform_data.release["service"] object. The reviewed destroy plan below contains one resource to destroy.

I then destroyed the object and confirmed that state was empty:

terraform destroy -auto-approve -input=false -no-color \
  | tee proof/91-destroy.txt
terraform state list \
  | tee proof/92-state-empty.txt
test ! -s proof/92-state-empty.txt

The cleanup reported 1 destroyed, and the final state list was empty. I removed the disposable evidence directory only after retaining the sanitized proof I needed.

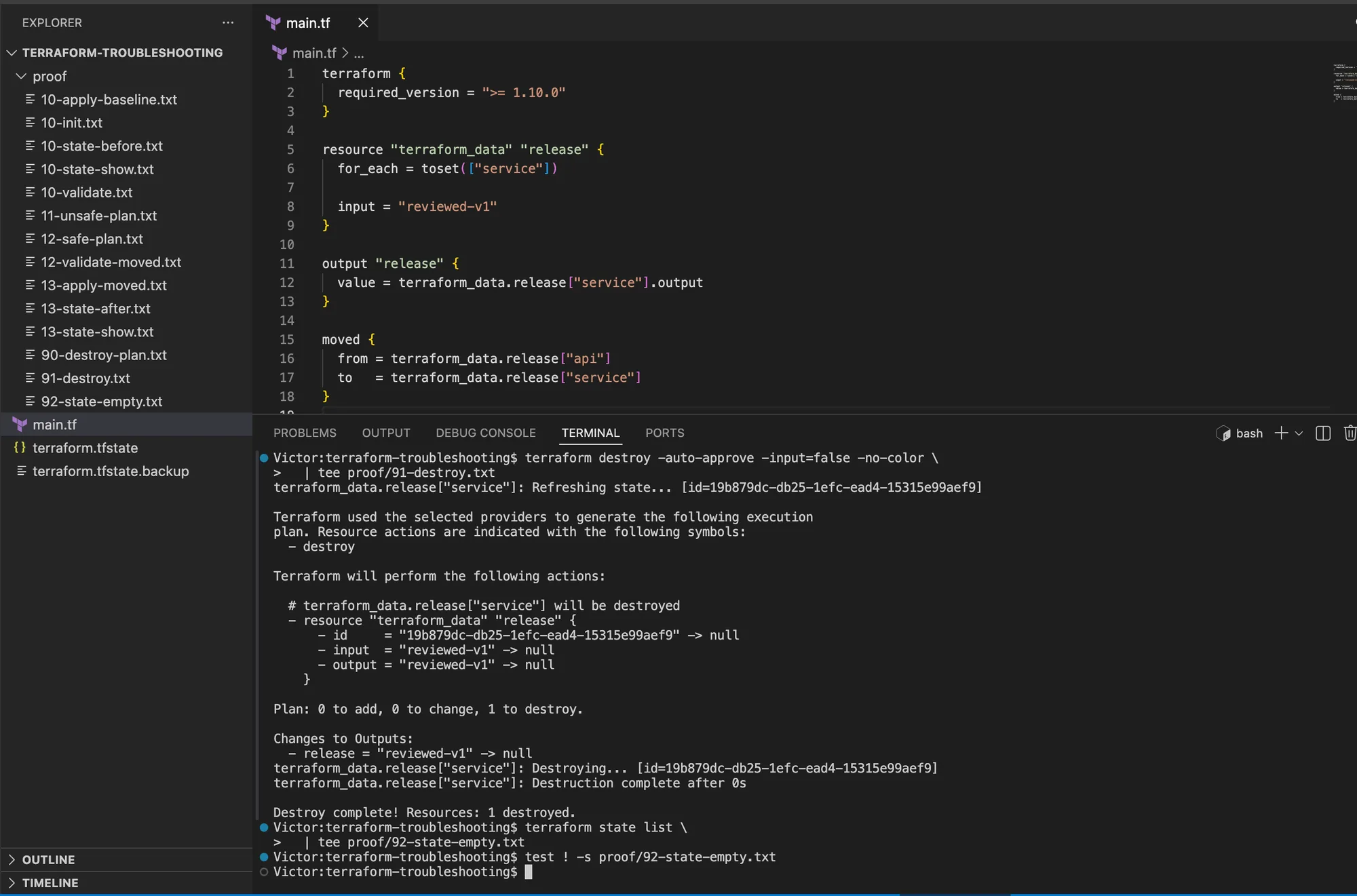

The final terminal output shows the single service instance being destroyed, followed by an empty terraform state list check.

The meaningful diff for Lab 2 was small: I renamed the collection key and output reference, observed the unsafe plan, then added one moved block that recorded the old and new addresses. I did not add a lifecycle rule, target the new instance, or run terraform state mv merely to suppress the replacement.

The troubleshooting habit that scales

I do not begin with a fix. I begin with stage, target, identity, state, version, and evidence. Then I make one reversible change and rerun the smallest command that proves or disproves the hypothesis.

That method turns a search-engine error message into an operational diagnosis. It also keeps my troubleshooting from becoming the second incident.
